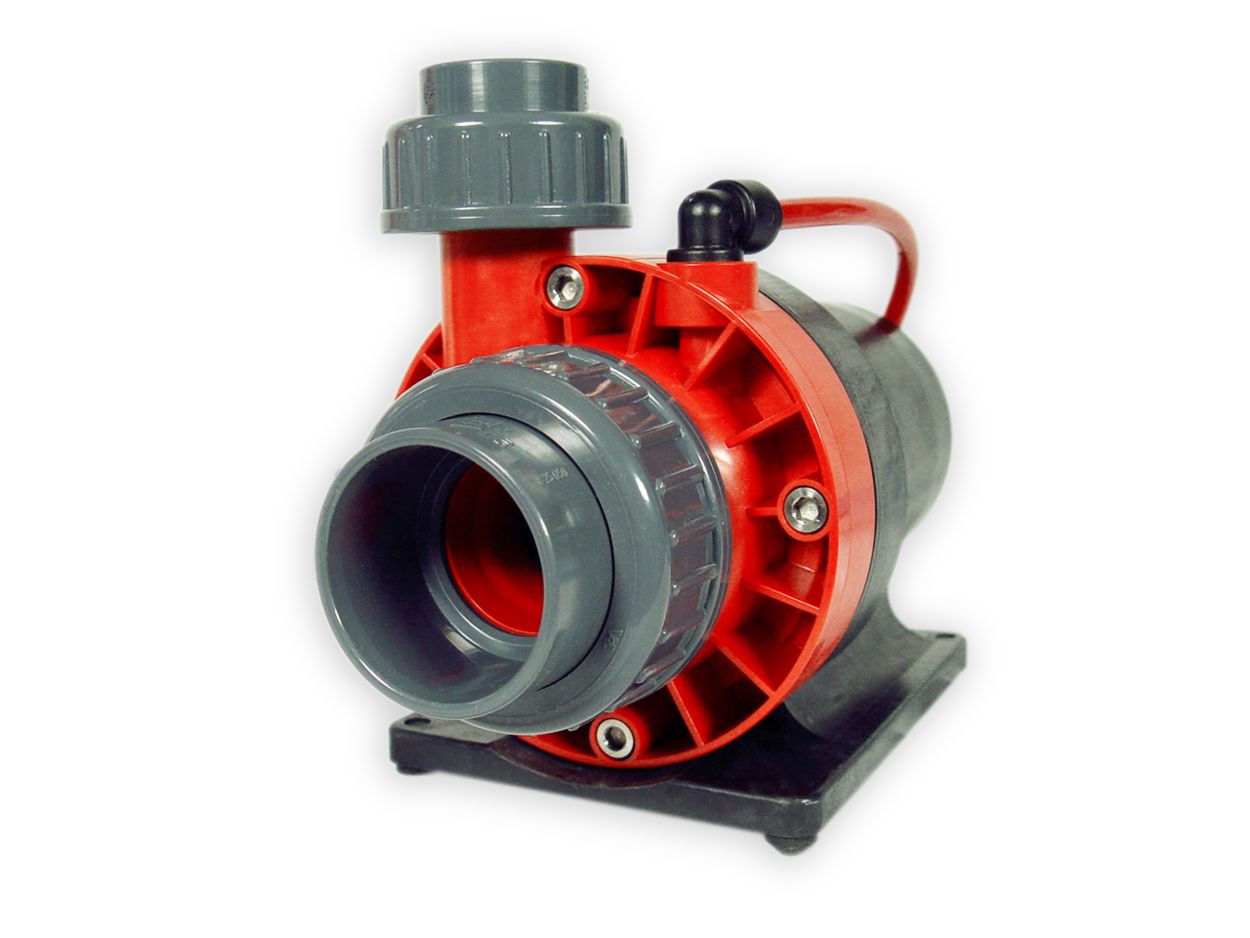

Red Dragon®3 Freshwater pump 100 Watt / 9,0m³ AKB anti-lime-bypass
Technical data Red Dragon® 3 Freshwater pump 100 Watt 9,0m³:
100 Watt/h 4,2 mtr. pressure height
intake side 50 mm - pressure side 32 mm
operating voltage: 230 Volt 50 Hz (not in 110V/60Hz available)
Protection class pump: IP 68
Weight pump: 4,5 kg
Height of intake side: center 75 mm
Dimension pump: 125 mm wide / 255 mm length / ~ 180 mm height
The Red Dragon® 3 freshwater pump also has a rear bearing flushing (AKB anti lime bypass) which prevents the formation of calcium deposits and dirt. This freshwater/sweet-water pump is a real energy saver and thus by the low-maintenance ideally equipped for use in whirlpools, swimming pools, garden ponds and open air pools or swimming baths.
- Supply pump with an asynchronous motor
- Heavy and solid design, vibration and interference vibrations
(Heavy and massive craftsmanship against vibrations and oscillation)
- Including parabolic rubber feet for acoustic decoupling and residual vibration
- Genuine quality product "Made in Germany"
All pumps-relevant parts: injection molding, stator, coil, electronics etc. are manufactured in Germany.
- Assembly, grouting, final inspection takes place in Germany. RD3 "Freshwater" is one of the few pumps, was developed and is produced in Germany, no re-labeling product of China.
- Incl. suction (inlet) and pressure (oulet) side complete VDL DIN fittings, compact design
- Extremely low-noise operation thanks to shrunken bearings from technical High-performance ceramics and with encapsulated power electronics
(grouted power electronics)
- The extremely break-resistant rotor included a 12 mm diameter ceramic shaft
- Compared with ECO pump models with 2 m maximum pressure height creates the RD3 freshwater-pump more than double (4. 2 m) with same power consumption 98Watt!
- RD3 freshwater pump is designed as a submersible pump,
can be used easily out of the water also
- CE conformity, developed and built according to VDE guidelines
Suitable slot pipes / split tubes for the protection of your pump
suitable decoupling/anti-vibration-sets, to make our silent pump more silent!
