Single Vlies (Fleece) Dreambox - filter

Product no.: VD-75

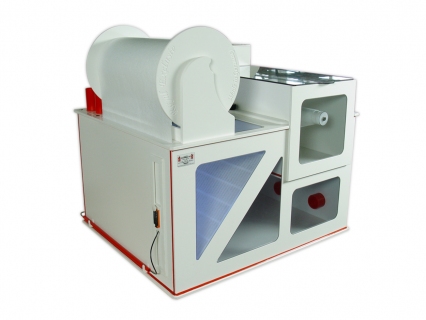

Single Vlies (Fleece) Dreambox^® 3.0 - filter size L

Technical data Vlies Dreambox^® size L:
Dimensions: 70 cm wide x 49 / 60 / 74 cm depth x 40 cm height
Dimensions: 75 cm wide x 49 / 60 / 74 cm depth x 70 cm height (overall height)

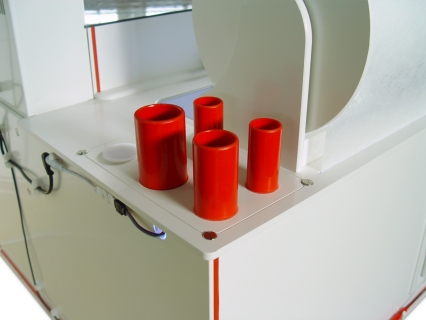

Intakes: Standard = 50 / 40 / 32 / 32 mm red +GF+ pipe (or free choose + 60,-¤)
Outtake: 2x 50 mm / 1x Emergency overflow 50 mm red pipe/connection tubes

1x Standard Vlies Roll for 49cm length
1x Standard Vlies Roll for 60 + 74cm length
at delivery 40 Gramm

Flow rate max. ~ 12.500l by 49cm depth // Volume: ~ 115 Liter
Flow rate max. ~ 15.000l by 60cm depth // Volume: ~ 130 Liter
Flow rate max. ~ 17.500l by 74cm depth // Volume: ~ 150 Liter

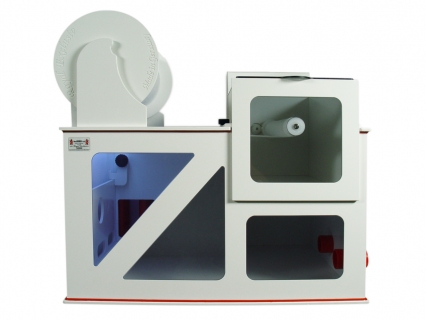

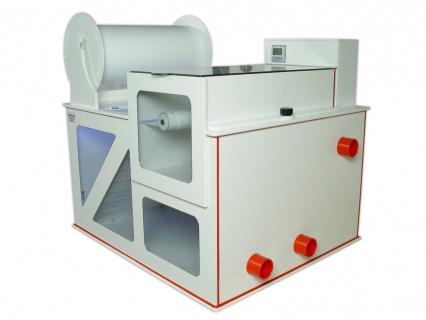

Fully automatic Vlies (Fleece) roll filter for fresh and saltwater aquariums. The Vlies (Fleece) of Dreambox^® 3.0 is made of 8 mm Simona-PVC slides (food safe), fixed from the inside and from the outside and finished with a hot gas welded seam by hand. Equipped with an integrated fleece roll filter, cover completely closed and control unit (Panasonic panel, sensor, drive motor).

high quality rigid PVC and Plexiglas^® (plexiglass)
hot gas welded not glued,
plastic welding never leak as like glass filter cases with silicone gaskets
significantly sturdily, shock proof and lower weight compared to glass
8 mm thickness of PVC and Plexiglas^® (plexiglass)
extremely noise-dampening by construction
Intelligent forced water supply by all chambers

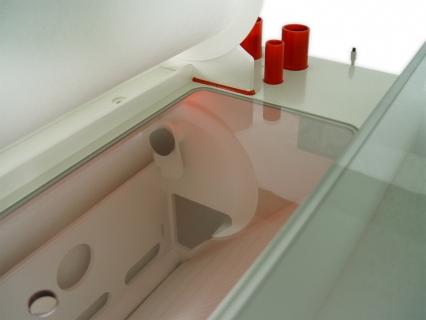

inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter are forwarding into the next Chamber
Sea-waterproof titanium bolts

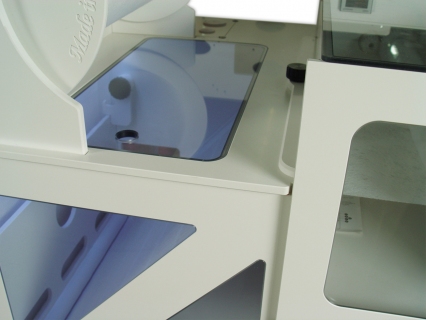

precise CNC milled cover (closed),
100% Made in Germany / Assembly by hand
with DIN connectors/tubes
3 different depth available, please choose a the menue
(49cm ~ 120l Volume, 60cm ~ 145l Volume or 74cm ~ 180l Volume)
30 Years of experience in PVC filter and skimmer construction
incl. LED-lightning with Remote-control

Roll Vlies Dreambox filter short description: (more details in the data sheet)
* complete fleece control unit filter removable, selectable upward
* baffle has a grip hole in the middle, as well as extra thin fleece coating surfaces
* baffle is embedded in a surrounding frame and can be completely out

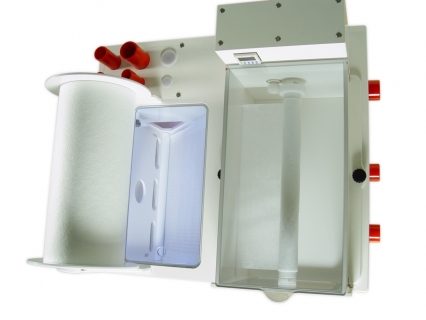

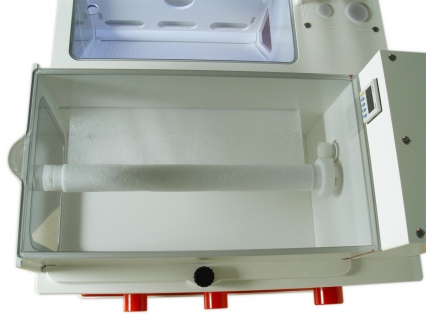

* drying chamber is fully above open, which significantly facilitates the removal and loading of the fleece roll
* drying chamber has an external process
* capacitive non-contact proximity switch on the side monitors the control unit of the motor by means of electronic

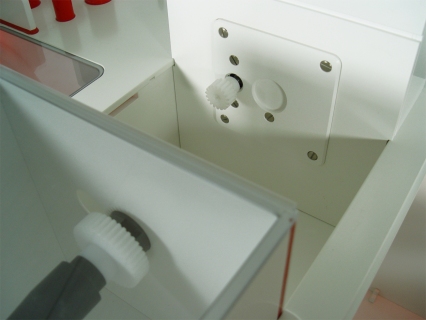

* sophisticated recoiler
* all components in the chamber of the electronics are mounted on the lid firmly
* 12-volt power supply "Made in Germany"

Single fleece filter for external installation out of the filter boxes.

Data sheet Vlies Dreambox 75_60.pdf Dreamboxes_overview_list.pdf
