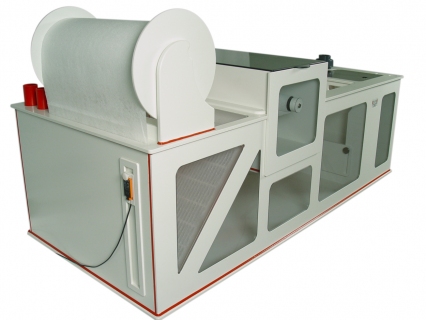

Vlies (Fleece) Dreambox - filter - sytem size S 130x60x35cm

Product no.: VD-130-60

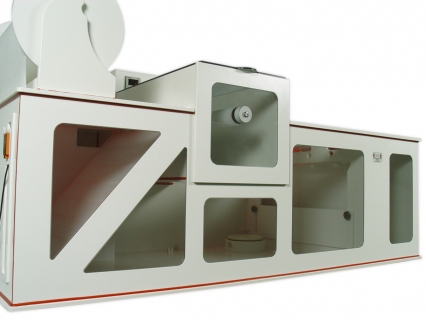

Vlies (Fleece) Dreambox^® 3.0 - filter system size S

Technical data Vlies Dreambox^® size S:
Dimensions: 130 cm wide x 60 cm length x 40 cm height
Dimensions: 130 cm wide x 60 cm length x 75 cm height (overall height)

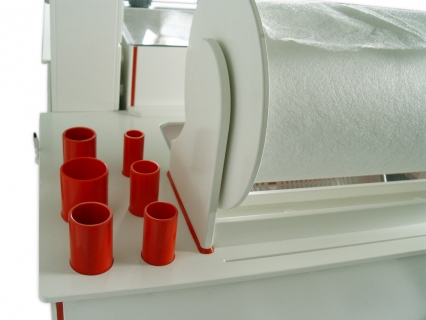

Intakes: Standard = 50 / 40 / 32 / 32 mm grey DIN screw connections or red +GF+ pipe (or free choose + 60,-¤)
Outtake: 1x 40 mm grey DIN screw connection

1x Standard Vlies Roll at delivery 40 Gramm

Volume: ~ 250 Liter

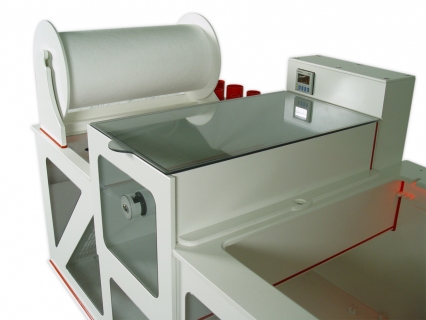

Fully automatic Vlies (Fleece) roll filter for fresh and saltwater aquariums. The Vlies (Fleece) of Dreambox^® 3.0 is made of 8 mm Simona-PVC slides (food safe), fixed from the inside and from the outside and finished with a hot gas welded seam by hand. Equipped with an integrated fleece roll filter, cover completely closed and control unit (Panasonic panel, sensor, drive motor).

high quality rigid PVC and Plexiglas^® (plexiglass)
hot gas welded not glued,
plastic welding never leak as like glass filter cases with silicone gaskets
significantly sturdily, shock proof and lower weight compared to glass
8 mm thickness of PVC and Plexiglas^® (plexiglass)
extremely noise-dampening by construction
fully prepared for the upgrade with media filters
Intelligent forced water supply by all chambers

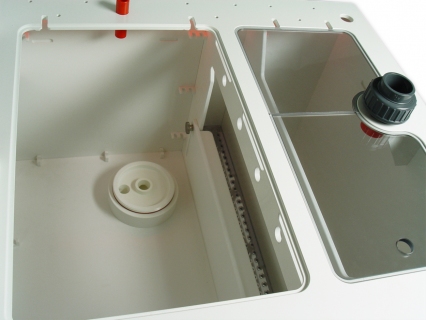

inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter are forwarding into the next Chamber
Sea-waterproof titanium bolts
by various options can be upgraded to the high-tech filter tank
precise CNC milled cover (closed),
optional: cover preparation and adaptation for new purchase of a Royal-Exclusiv^® skimmers (57,40¤ net)
from 130 cm box with oxygen degassing Chamber
Water level adjustable from 14 cm-23 cm
100% Made in Germany / Assembly by hand
with DIN connectors/tubes
modified 125mm Media- /Pellet-Filter available,
optional: installation and plumbing
(single = 378,54¤, double = 533,32¤, tripple = 688,10¤ net, columnar)
30 Years of experience in PVC filter and skimmer construction
Roll Vlies Dreambox filter short description: (more details in the data sheet)
* complete fleece control unit filter removable, selectable upward
* baffle has a grip hole in the middle, as well as extra thin fleece coating surfaces
* baffle is embedded in a surrounding frame and can be completely out

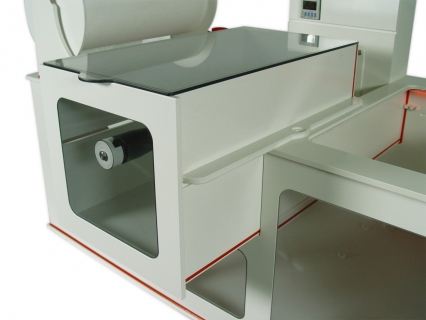

* drying chamber is fully above open, which significantly facilitates the removal and loading of the fleece roll
* drying chamber has an external process
* capacitive non-contact proximity switch on the side monitors the control unit of the motor by means of electronic

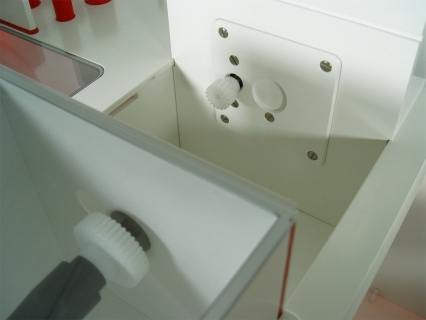

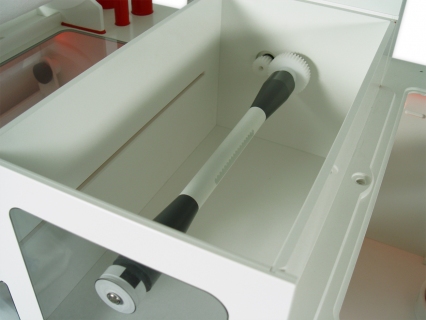

* sophisticated recoiler
* all components in the chamber of the electronics are mounted on the lid firmly
* 12-volt power supply "Made in Germany"
