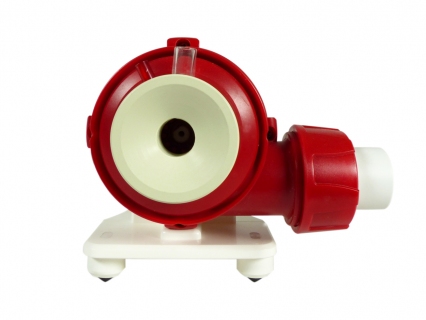

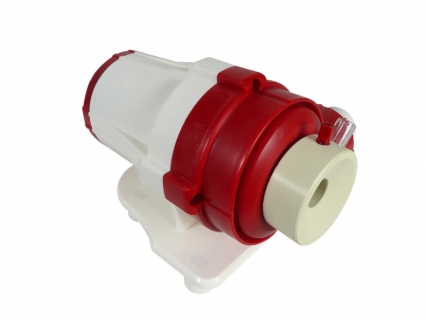

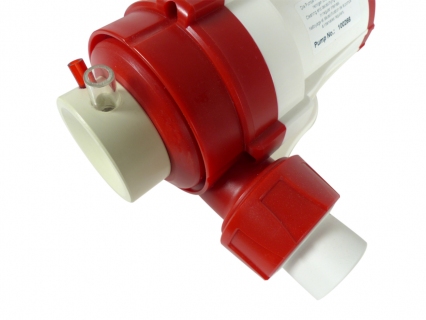

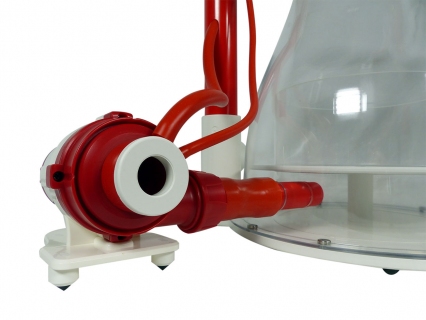

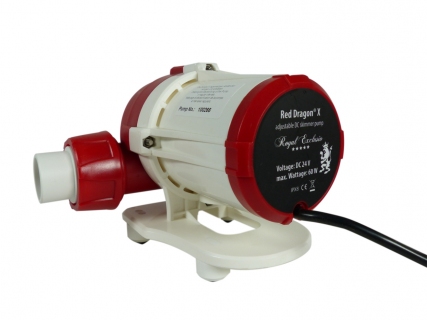

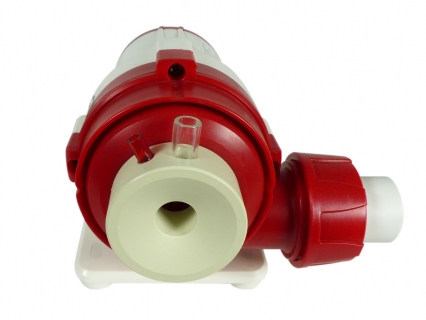

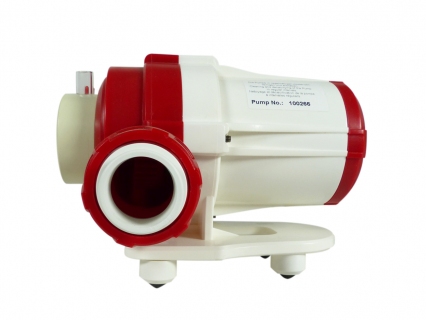

Red Dragon® X skimmer pump 60 Watt / 2500 l/h for BK DC - SM - DL 250 + 300

Product no.: 7120S

Red Dragon^® X skimmer pump 60 Watt / 2.500 l/h
with 24V Technology
for Bubble King^® Double Cone 250 + 300
for Bubble King^® SuperMarin 250 + 300
for Bubble King^® DeLuxe 250 + 300

Technical data Red Dragon^® X DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 60W

Delivery rate: 500-2.500 l/h Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 8-steps from ~ 8W up to 63W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 45 mm
Dimension pump: 90 mm wide / 150 mm length / ~ 130 mm height
Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height

Suitable for:
für Bubble King^® Double Cone 250 + 300
für Bubble King^® SuperMarin 250 + 300
für Bubble King^® DeLuxe 250 + 300
???????
Delivery with suitable connection piece
Silicone-decoupling-connection-pieces 32mm

RDX Skimmer Pump - Operating_and_maintenance_manual.pdf
Power_curves_and_controller_settings.pdf
